EUCHNER ZSM2300-112803 3-Stage Enabling Switch 9.8m Cable New Open Box (1.3.2)

Condition

New – Open Box

Description

EUCHNER ZSM2300-112803 3-Stage Enabling Switch – Order No. 112803

Genuine EUCHNER industrial safety enabling switch.

This unit is New Open Box. It was installed as part of an industrial automation project, but the project was never commissioned or placed into operation. The equipment was subsequently removed and stored and has never been used in production.

Because the unit was previously installed and removed, minor cosmetic marks from mounting, handling, removal, or storage may be present. These signs do not represent operational or production use.

Original manufacturer box is not included.

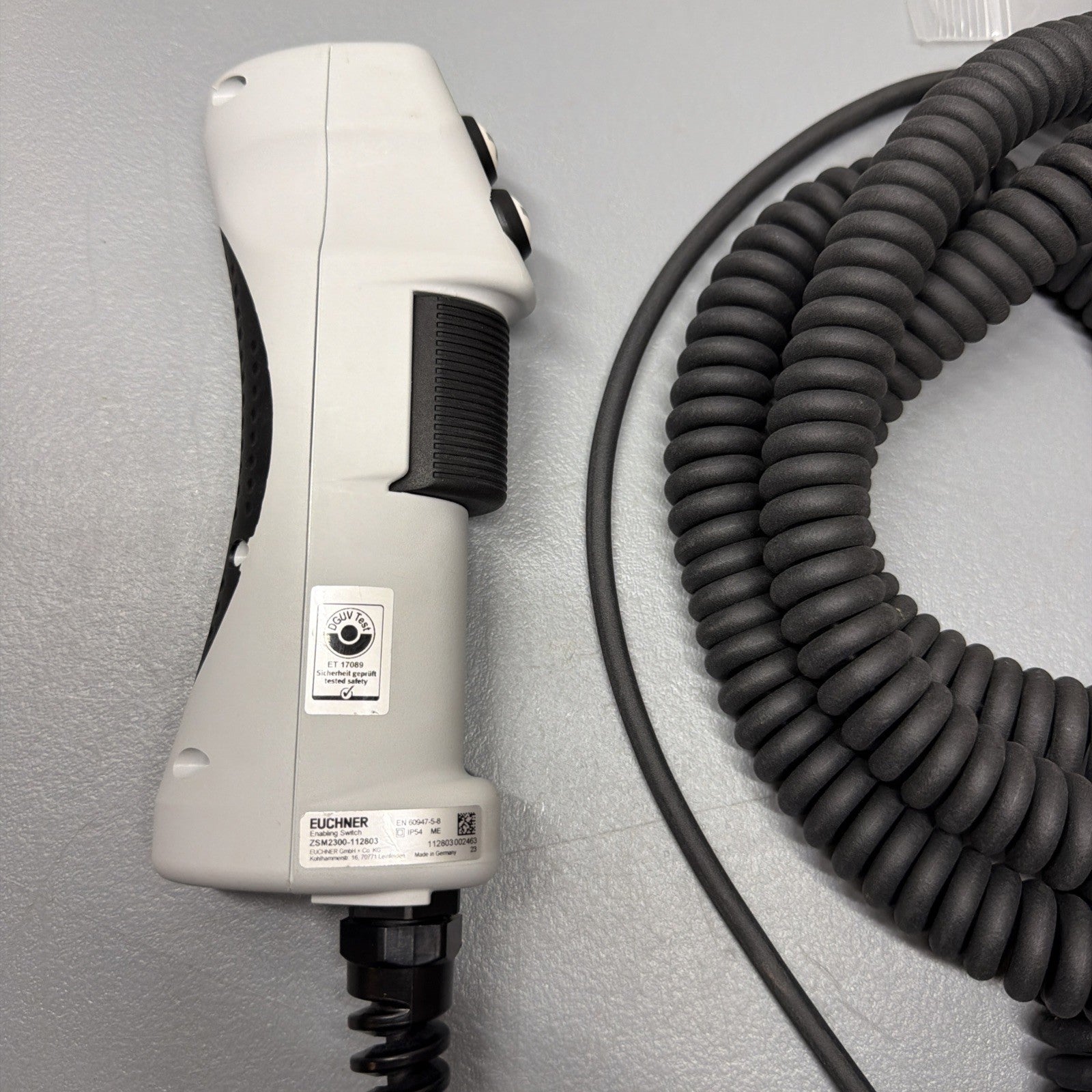

Please review all listing photos carefully, as they show the actual item and its condition.

Product Details

* Brand: EUCHNER

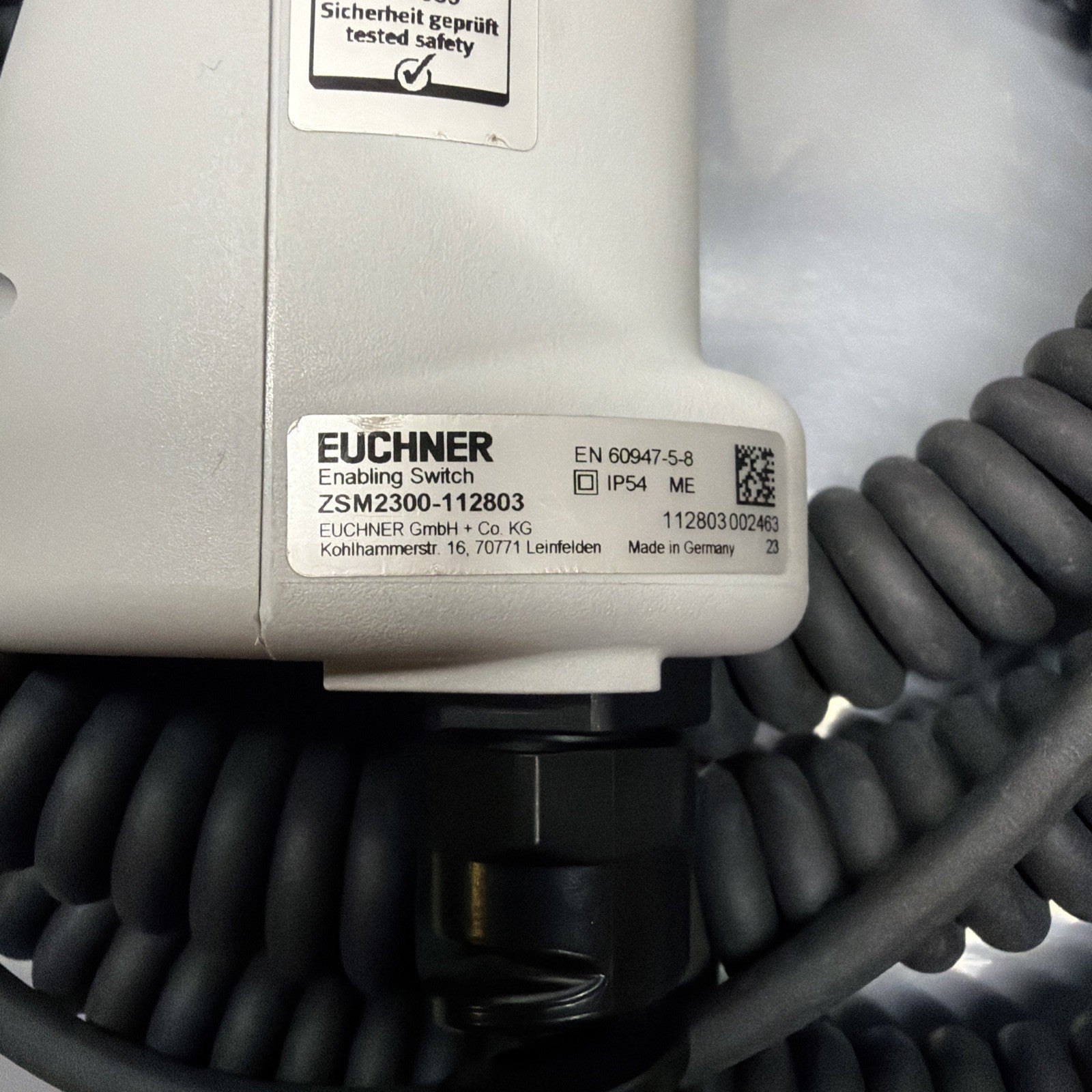

* Model: ZSM2300-112803

* Order Number / MPN: 112803

* Product Type: 3-Stage Enabling Switch

* Series: ZSM

* Switching Function: 3-Stage

* Enabling Position: Center / Second Stage

* Feedback: Vibration Signal

* Indicator: Yellow LED

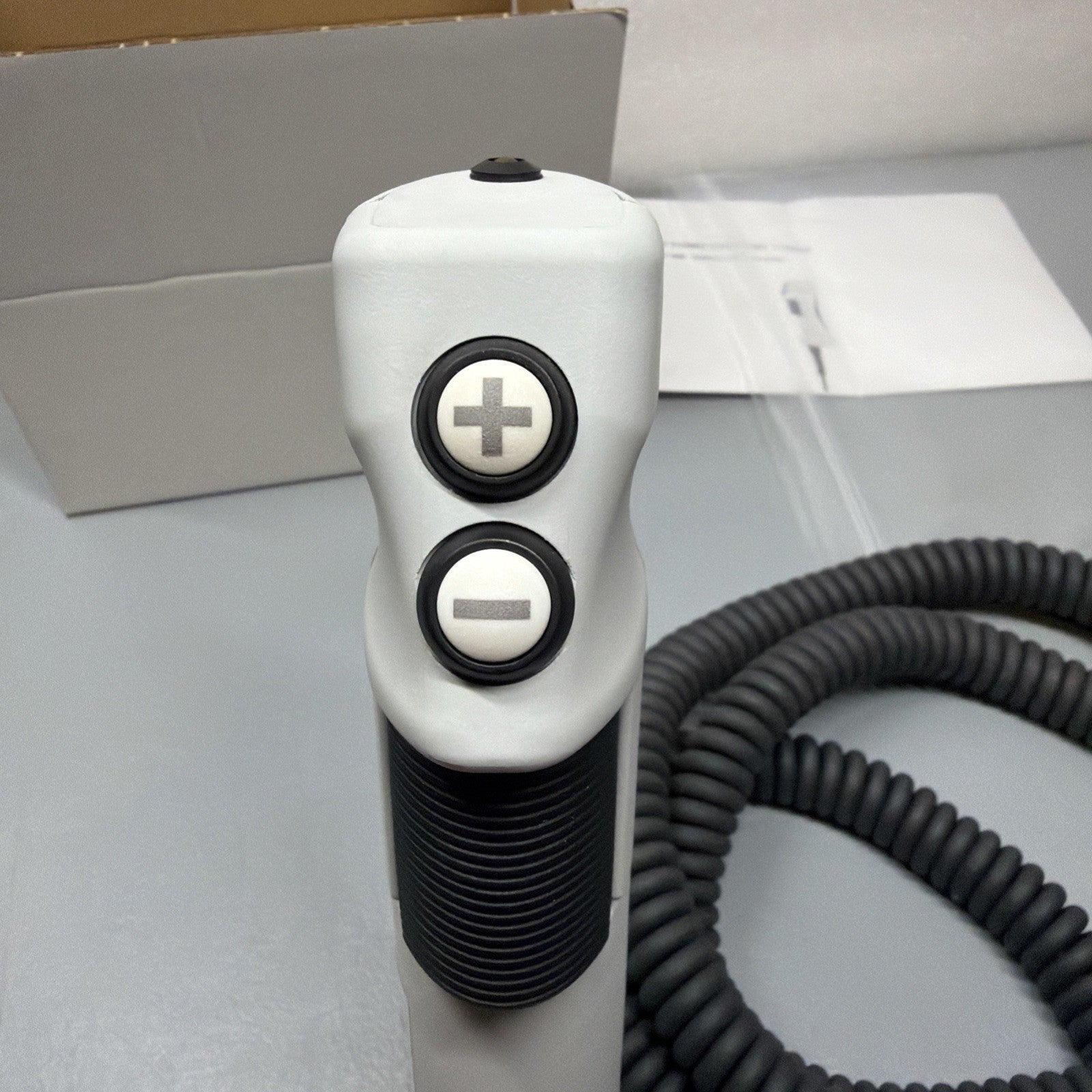

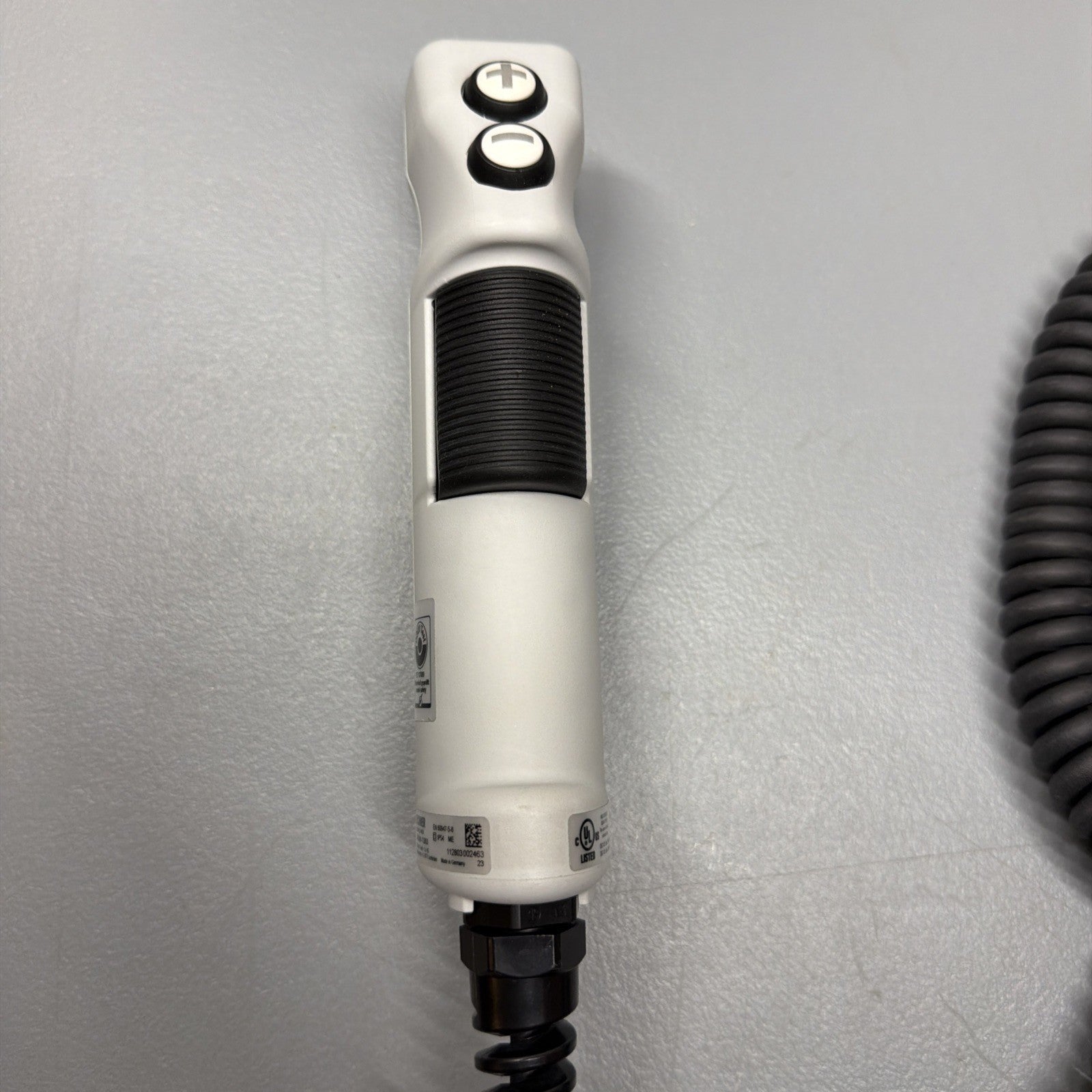

* Additional Controls: + and – Push Buttons

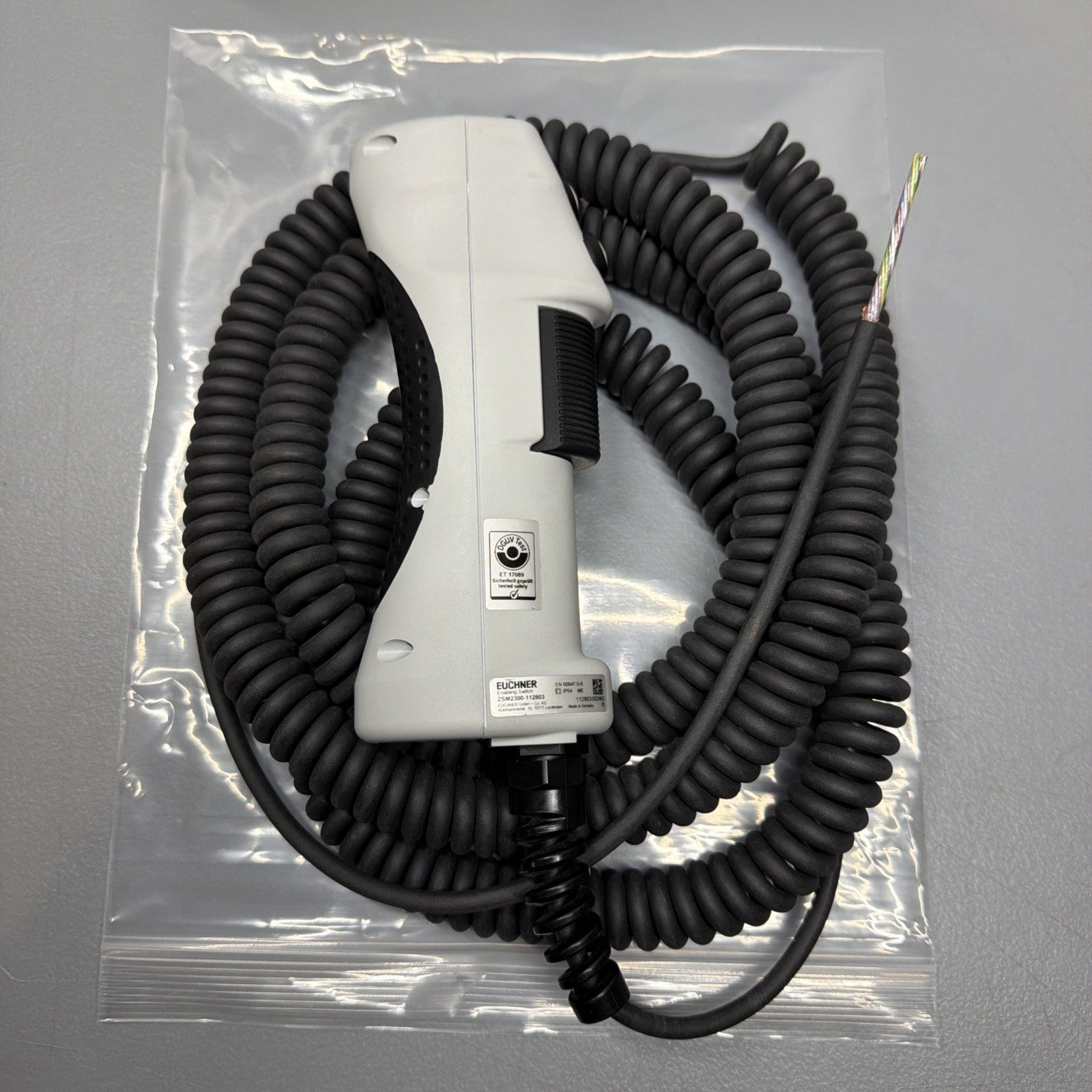

* Cable Type: Coiled Connecting Cable

* Cable Length: 9.8 m

* Connection: Flying Lead

* Connecting Cable: 12 x 0.14 mm²

* Number of Changeover Contacts: 3

* Rated Insulation Voltage: 50 V

* Rated Impulse Voltage: 0.5 kV

* Maximum Fuse: 2 A gG

* Protection Rating: IP54

* Operating Temperature: -5°C to +60°C

* Storage Temperature: -25°C to +70°C

* Mechanical Life: 1 × 10⁶ operations

* Switching Principle: Snap-Action Contact Element

* Standard Compliance: EN 60947-5-8

* Quantity: 1

Function

The ZSM2300 is a handheld industrial enabling switch designed for applications where an operator must deliberately enable machine movement or functions during setup, maintenance, adjustment, or other controlled operations.

The enabling function is active in the second/center position. Releasing the switch or pressing it further into the third-stage/panic position removes the enabling function, depending on system wiring and configuration.

The integrated vibration function provides tactile feedback when the enabling position is reached, while the LED provides visual feedback. The + and – push buttons can be individually configured, for example for positive and negative axis movement.

Condition Details

NEW OPEN BOX – INSTALLED BUT NEVER USED IN OPERATION

This unit was installed as part of an industrial automation project. However, the project was never commissioned and the equipment never entered operational or production service.

It was subsequently removed from the installation and stored.

Minor cosmetic signs associated with installation, removal, handling, or storage may be present.

Original manufacturer packaging is not included.

Included

* 1x EUCHNER ZSM2300-112803 Enabling Switch

* Integrated coiled connecting cable

Only the equipment and accessories specifically shown in the listing photos are included.

Please verify Model ZSM2300-112803 / Order No. 112803 and compatibility with your machine or safety system before purchasing.

Your order will be carefully and professionally packaged for safe shipment.
